Features& Applications

• • AD acquisition up to 2000 times/sec with high anti-interference.

  • Chinese/English menu supported with green OLED display.

  • High-precision analog output optional: 4–20mA, 0–10V, etc.; auto-calibrated with minimal need for adjustment.

  • Supports up to 3 independent channels; each channel can calibrate independently and supports weight-free calibration.

  • Rich interfaces: RS232, RS485 (Modbus RTU); expandable to PROFIBUS DP, PROFINET, Ethernet/IP, EtherCAT, Modbus TCP.

  • Rich logic control: single-material increment/decrement batching, check-weigh batching, preset point, servo press control, constant pressure control, etc.

  • Optional secondary 4.3-inch TFT color display for extended viewing/operation.

  • Customized host computer software development available.

  Applications:

  • HK360-W (Weighing Version): chemical/pharmaceutical batching, filling, tank/reactor weighing, level control via relay to PLC/DCS systems; also for biopharmaceuticals, photovoltaics, and new energy battery batching.

  • HK360-F (Force Measurement Version): 3C electronics, mobile phone/automobile manufacturing, new energy batteries, photovoltaics; compatible with international PLCs; suitable for local control or slave control with PLC/PC.

Display And Panel

Status Information

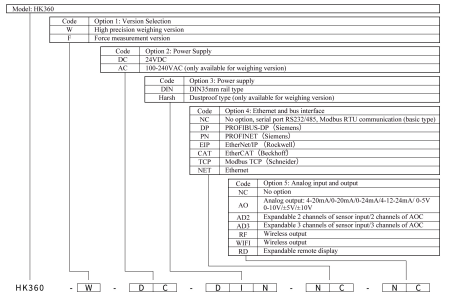

Product Selection

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.

BRANS is a certified manufacturer of high-precision measurement technologies, specializing in force sensors, load cells, torque sensors, multi-axis sensors, and data acquisition systems. Our ISO 9001-certified solutions serve diverse industries with reliable measurement instruments and custom engineering expertise.

We combine precision engineering with robust software solutions, delivering faster, more accurate measurements with superior noise immunity. BRANS empowers innovation across industries - helping customers create cleaner, healthier, and more productive technologies through reliable measurement.

Core Competencies:​

Micro-force sensors & high-precision load cells

Multi-axis force/torque measurement

Custom non-standard solutions

Advanced data acquisition systems (digital transmitters, controllers, multi-channel devices)
