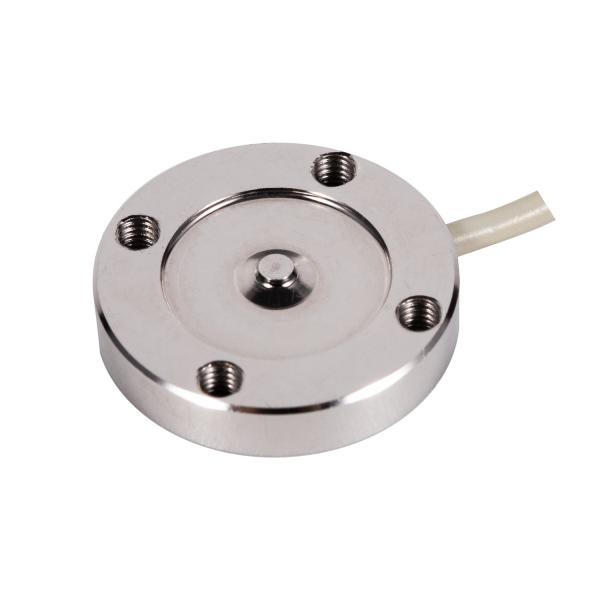

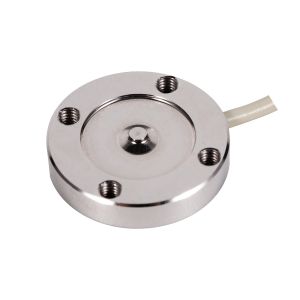

Thin Micro Compression Donut Load Cell with Threaed Holes- CF-805B
Product Description:
The CF-805B button type load cell offers high accuracy and high stiffness.The nominal load range is from 50N to 1000N. It has a nonlinearity of ± 0.5% and a deflection of 0.002 in nominal. Constructed in 17-4 PH stainless steel, it has ultra fast response and very low deflection. The robust design make sure the steady performance and good resistance to water possible.
Brans are always devoted to delivering satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.
To make sure providing the best solution, the load cell can be adapted to meet customer requirements.
Specifications:
| Capacity | 50,100,200,500,1000N |
| Rated output | 1.5±20%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | ≤0.50%F.S. |
| Hysteresis | 0.50%F.S. |
| Repeatability | 0.20%F.S. |
| Creep(30min) | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10ºC |
| Temp.effect on zero | 0.05%F.S./10ºC |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60ºC |
| Operation temp range | -20~80ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ2×4000mm |
| Weight approx. | 0.1kg |
| Material | Stainless Steel |
| IP Class | IP65 |
Dimension(MM):
Load Direction:
Wiring:
