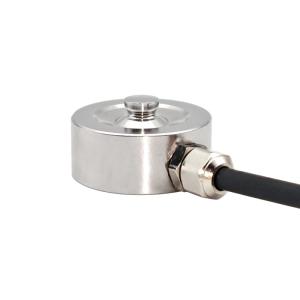

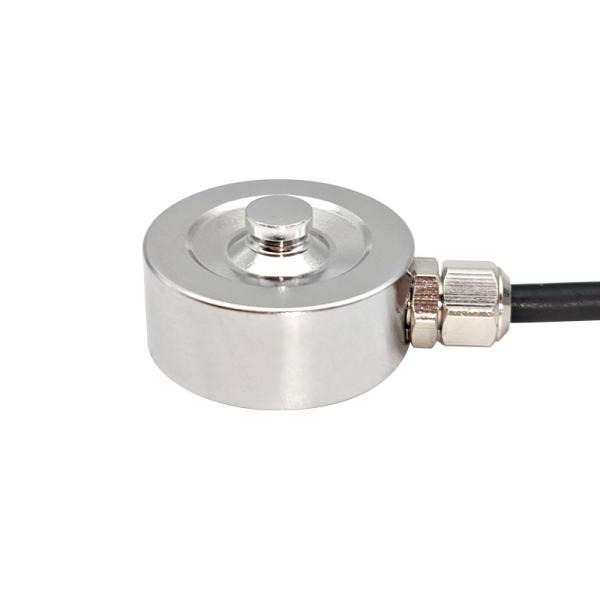

Micro Button Compression Load Cell 50N To 20kN(CF-804A)
Product Description:
The CF804A is a button type load cell with threaded mounting holes built for press, or inline compression applications. This Button Load Cell has a very robust construction available in 17-4 Stainless Steel, with 16.5mm outside diameter and a 4 meters long 24 AWG 4 conductor shielded cable. Available in a wide range of standard capacities from 50N through to 2000N, it has non-linearity of0.5%F..S. and repeatability of 0.2%F.S.
Brans are always devoted to delivering satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.
To make sure providing the best solution, the load cell can be adapted to meet customer requirements.
Features :
Specifications:
| Capacity | 50/100/200/500N,1/2/5/10/20kN | ||||||
| Sensitivity | 1.5±20%mV/V | ||||||
| Zero balance | ±0.05mV/V | ||||||
| Non-linearity | 0.5%F.S. | ||||||
| Hysteresis | 0.2%F.S. | ||||||
| Repeatability | 0.2%F.S. | ||||||
| Creep(30min) | 0.10%F.S. | ||||||
| Temp.effect on output | 0.05%F.S./10°C | ||||||
| Temp.effect on zero | 0.05%F.S./10°C | ||||||
| Input impedance | 800~1100Ω | ||||||
| Output impedance | 800~1100Ω | ||||||
| Insulation | ≥ 5000MΩ/100VDC | ||||||
| Recommended excitation | 5-15V | ||||||
| Maximum excitation voltage | 20V | ||||||
| Compensated temp range | -10-60°C | ||||||
| Operating temperature range | -20-80°C | ||||||
| Safe load limit | 150%F.S. | ||||||
| Breaking load | 200%F.S. | ||||||
| Cable size | Ф3× 4000mm | ||||||
| Material | Stainless Steel | ||||||
| IP Class | IP67 |
Dimension(MM):
Load Direction:
Wiring:
