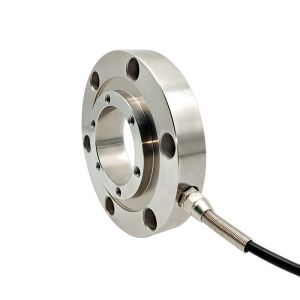

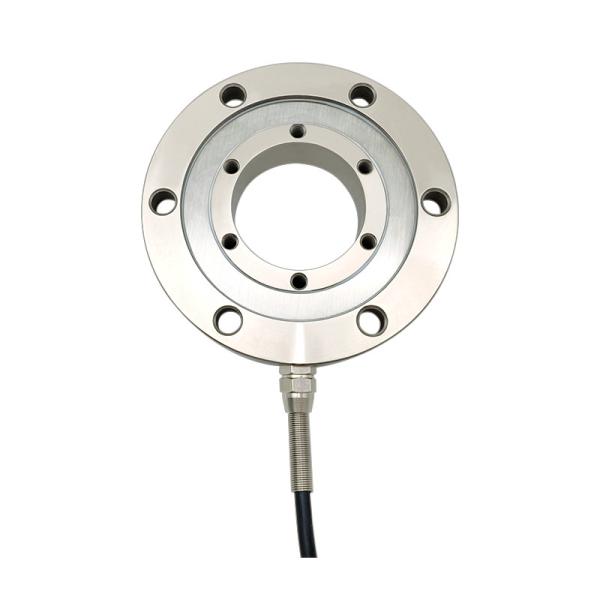

0.1/0.2/0.5/1/2/3/5/10T Pancake Type Compression and Tension Load Cell-TCF-732

Product Description:

Brans flat pancake load cell offers a great solution for high capacity tension and compression applications. Built in robust 17-4 ph stainless steel, the TCF 732 comes in maximum capacities loads 0.1t~10t with a 4 meter teflon braided wire. This load cell delivers a good performance for it reaches a non-linearity of 0.2% F.S. and combined accuracy of 0.2% F.S. The low profile and through-hole hollow structure allows easy mounting and replacement in applications where space is limited.

Features & Applications:

• Pancake type force sensor for tension and compression use
• Made of stainless steel/alloy steel
• Maximum capacities loads 0.1~10t
• Low profile,through-hole hollow structure,big capacity
• Different cable lengths,dimensions,capacities and other options available
• Mainly used for automotive press fit,automated assembly,3C product testing, new energy products assembly,mdedical testing, robotics,mold assembly and other industrial testing and controlling system.

Specifications:

Dimension(MM):

Load Direction:

Wiring:

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
