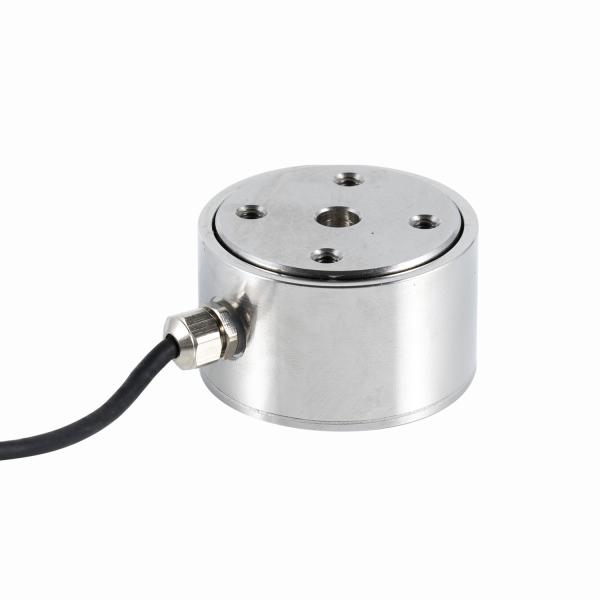

Miniature Column Type Compression and Tension Load Cell-TCF-717

Product Description:

Brans TCF717 Miniature Column Load Cell offers an impressive compact design for high capacity applications. With a diameter of 41mm, it is ideal for tight spaces. The TCF717 is offered in 17-4 PH stainless-steel in 50N to 100KN capacities with a raised surface radius to lower the possibility of off center loading.

The TCF717 Miniature Column Load Cell is designed to measure loads in compression. This model is manufactured in China and uses metal foil strain gauge technology. Additional design features include the use of a strain relief, which provides much greater protection when pulled.

Features & Applications:

• High speed, low deflection
• Minimal mounting clearance
• Outer diameter 41mm, 25mm as height
• 17-4 PH stainless-steel construction
• For use in both tension and compression
• Utilizes metal foil strain gauge technology

Specifications:

Dimension(MM):

Load Direction:

Wiring:
