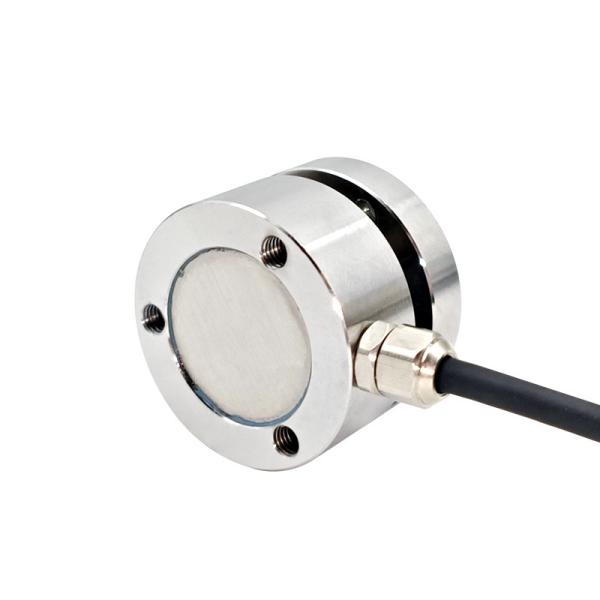

0.5/1/2/3/5kN Flange Type Compression Load Cell With Small Dimension -CF-813

Product Description:

Crafted in stainless steel with IP67 protection,the CF-813 is a miniature flange compression load cell special for use in automated control,fixture clamping force measurement, load distribution analysis, hand press force verification, and so on. It is tested loaded to150% of normal rated load and has 0.5% non-linearity.The miniature dual-plane design makes possible this flange type load cell easy installation and small deflection with compact structure.

Brans are always devoted to delivering satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.

To make sure providing the best solution, the load cell can be adapted to meet customer requirements.

Specifications:

Dimension(MM):

Load Direction:

Wiring:

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.

BRANS is a certified manufacturer of high-precision measurement technologies, specializing in force sensors, load cells, torque sensors, multi-axis sensors, and data acquisition systems. Our ISO 9001-certified solutions serve diverse industries with reliable measurement instruments and custom engineering expertise.

We combine precision engineering with robust software solutions, delivering faster, more accurate measurements with superior noise immunity. BRANS empowers innovation across industries - helping customers create cleaner, healthier, and more productive technologies through reliable measurement.
