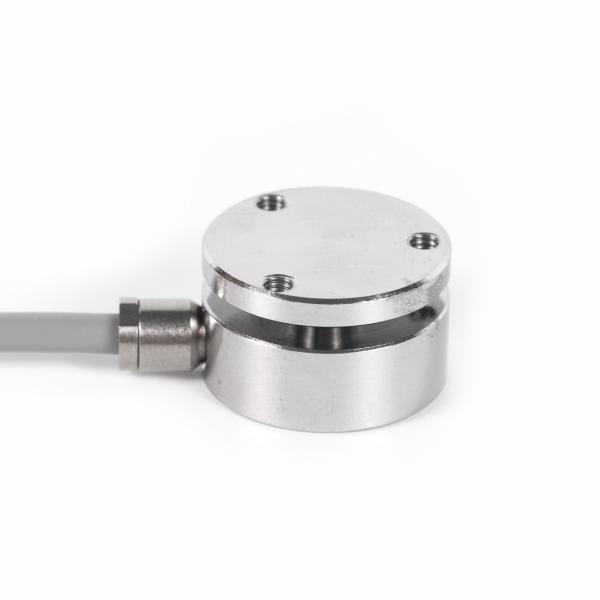

    Buy cheap Flange Type Load Cell 0.5kN 1kN 2kN 3kN 5kN Miniature Load Cell Sensor from wholesalers

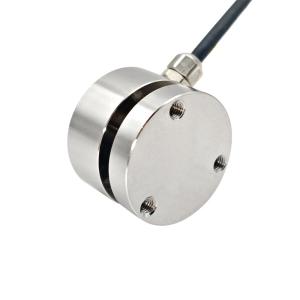

    Buy cheap Flange Type Load Cell 0.5kN 1kN 2kN 3kN 5kN Miniature Load Cell Sensor from wholesalers
    • Buy cheap Flange Type Load Cell 0.5kN 1kN 2kN 3kN 5kN Miniature Load Cell Sensor from wholesalers
    • Buy cheap Flange Type Load Cell 0.5kN 1kN 2kN 3kN 5kN Miniature Load Cell Sensor from wholesalers

    Flange Type Load Cell 0.5kN 1kN 2kN 3kN 5kN Miniature Load Cell Sensor

    Ask Lasest Price
    Brand Name : BRANS
    Model Number : CF-813
    Payment Terms : L/C, T/T, Western Union,Paypal
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

    Flange Type Load Cell 0.5kN 1kN 2kN 3kN 5kN Miniature Load Cell Sensor

    Miniature Flange Type Compression Load Cell 0.5/1/2/3/5kN-CF-813


    Product Description:

    The CF-813 flange type compression load cell is made of stainless steel,available in different load capacity options0.5/1/2/3/5kN. It features low profile design, small deformation and high dynamic response frequency. It provides an ideal solution for appliactions where space is limited, for exampple, automoyive press fit,automated assembly,3C product testing, new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and copntrol system.


    Brans are always devoted to delivering satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.

    To make sure providing the best solution, the load cell can be adapted to meet customer requirements.



    Specifications:


    Capacity0.5/1/2/3/5kN
    Sensitivity1.5.±20%mV/V
    Zero balance±0.05mV/V
    Non-linearity0.05%F.S.
    Hysteresis0.05%F.S.
    Repeatability0.20%F.S.
    Creep(30min)0.10%F.S.
    Temp.effect on output0.05%F.S./10°C
    Temp.effect on zero0.05%F.S./10°C
    Input impedance800-1100Ω
    Output impedance800-1100Ω
    Insulation≥ 5000MΩ/100VDC
    Recommended excitation5-15V
    Maximum excitation Voltage20V
    Compensated temp range-10-60°C
    Operating temperature range-20-80°C
    Safe load limit150%F.S.
    Breaking load200%F.S.
    Cable sizeФ3 × 4000mm
    Weight approx.0.1kg
    MaterialStainless Steel
    IP ClassIP67

    Dimension(MM):





    Load Direction:



    Wiring:


    Load Cell Packaging and Shipping


    To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

    1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
    2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
    3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
    4. Additional layers of bubble wrap will be provided for additional protection.
    5. The carton is securely taped to prevent tampering.
    6. A shipping label with your address and product information is attached to the box.
    7. The package is shipped using a reliable and trusted freight carrier.


    Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
